Baomic BM-5 S3
Violin Professional wireless microphone
(ไวโอลิน wireless / wireless สำหรับ ไวโอลิน) wireless violin baomic ไมล์ลอยไวโอลิน หรือ ไวเลสไวโอลิน
Brand : Baomic
Model : BM-5 S3
รับประกัน : 1 ปี
ราคา wireless Saxophone Baomic BM-5 S3
7,500 ฿
6,500 ฿

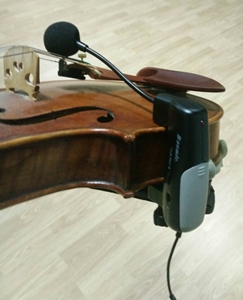

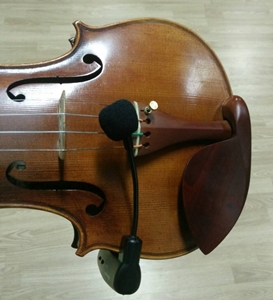

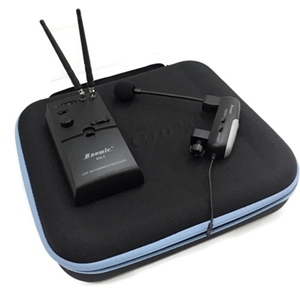

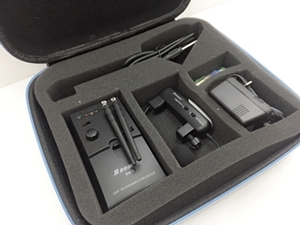

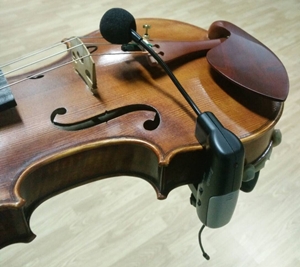

Violin Professional Wireless Microphone Baomic bm-5
violin wireless transmitter violin wireless audio
ACT (LET Flash) Low Battery (LED On when battery less than 1V)
Indicators: Power On (LED Flash)
Controls: Power Switch, 15dB Pad
SwitchAntenna: Permanently attached 11 4 wave length wire
Battery Life: 8 Hours (AAA Side battery)
Current Consumption: 80mAOperating
Power Voltage: 1.5V Tpical 1.0V Minimum 2V MAX
Audio Frequency Response: 50Hz-20KHz +3 d
BTHD: <0.8% (1KHz 100mV)
Input Impedance: 20K ohms
Maximum Input Level: +2 dBV
Pre-emphasis: 50usec
Modulation: 40K
Spurious:-50dBmRF
Output Power: 10dB ? 1dBTransmitter
Low power (orange), single (green)
Controls: ACT SEND (white), Power (red)
Controls: Audio level volume channel select switch, ACT keyDual l/4wave length rod antennas
Antenna: Dual l/4wave length rod antennas
Current Consumption: 9V/60mA 3V/100mA
Power: DC9V/6V AA (1.5Vx2 Battery)
Output Impedance: 5K-10K ohmsTHD: (flKHz) <0.8%
Audio Frequency Response: 50Hz-20KHz +3 dB
Audio Output Level: (f40KHz) 400Mv
Signal / Noise Ratio: (flKHz = lmV) <0.8%
Squelch Sensitivity: 17dBuV +4 dBuV
Receiving Sensitivity: Sina> 30dB 10dBuV
De-dmphasis: 50u/sec
Operating Distance: 40m (receiver in sight)OSC (Oscillator)
System: PLL circuit
Modulation Type: F3E
Receiving Frequencies: 460MHz-990MHzReceiver
